Processor:

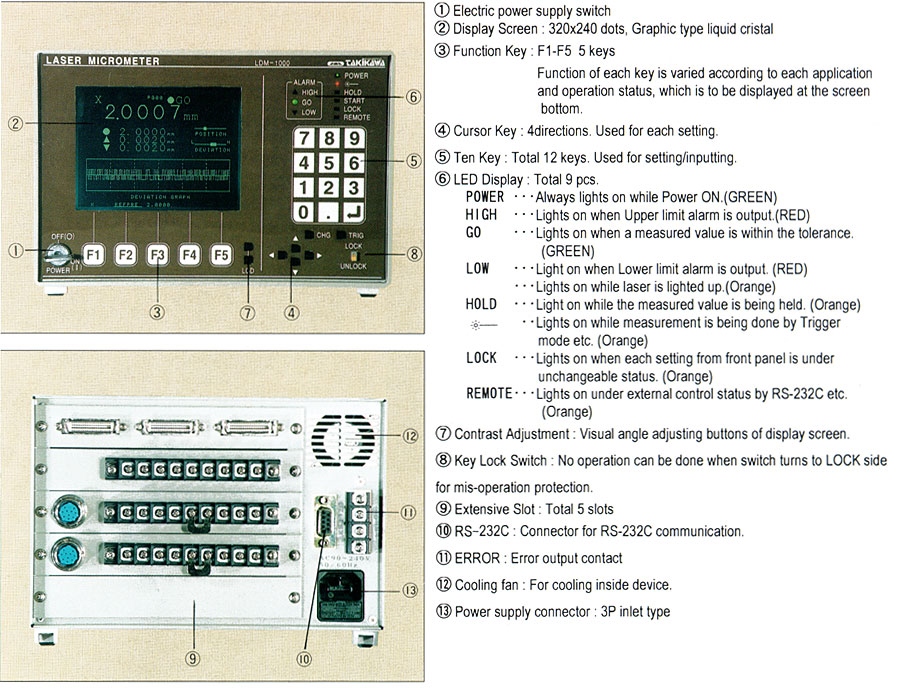

LDM-1000 |
|
Display |
Max. No. of Scanning Heads |
5 |
|
Display Type |
Graphic Display |
|
Display Range |
-99.9999 to 999.999 |
|
Position Indicator |
2-Dimension Graphics & Bargraph |
|
Deviation Indicator |
Graphic Bargraph |
|
Time Plot Display |
3-Axis Simultaneously |
|
Hexagraph Divergent Display |
3-Axis Simultaneously |
|
Tolerance Check Output Display |
High-Go-Low Graphics up to 10 outputs max. |
|
Inputs/Outputs |
Trigger Input |
1-Normal 2-Max. 3-Min.
4-Max-Min 5-Average
6-One-shot measurement |
|
Timing Input |
yes |
|
Analog Voltage Output |
+/- 10 VDC - up to 5 outputs max. |
|
Alarm Outputs |
2 amp Relay - up to 10 outputs max. |
|
Error Output |
yes |
|
Interface
Port |
RS-232C |
Measurement Data output and
Configuration
Control Input |
|
IEEE-488 |
optional |
|
BCD |
optional |
|
General |
Power Supply |
90-240 VAC 50 / 60 Hz |
|
Ambient Temperature |
0 to 45 degrees C |
|
Relative Humidity |
35 to 85% RH (non-condensing) |
